Probe type	Designation	Angle	Transducer element size [mm]	Frequency [MHz]
angle probe	HFD 9x8-2M-35	35°	8x9	2 MHz
	HFD 9x8-2M-45	45°	8x9	2 MHz
	HFD 9x8-2M-60	60°	8x9	2 MHz
	HFD 9x8-2M-70	70°	8x9	2 MHz
	HFD 9x8-2M-80	80°	8x9	2 MHz
	HFD 9x8-4M-35	35°	8x9	4 MHz
	HFD 9x8-4M-45	45°	8x9	4 MHz
	HFD 9x8-4M-60	60°	8x9	4 MHz
	HFD 9x8-4M-70	70°	8x9	4 MHz
	HFD 9x8-4M-80	80°	8x9	4 MHz

Probe type	Designation	Transducer element* diameter[mm]	Frequency[MHz]

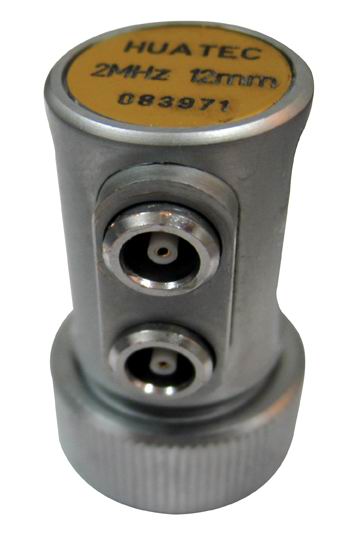

Dual straight probe	PQ 2/10-2M	Ø 10	2 MHz
	PQ 2/10-4M	Ø 10	4 MHz
	PQ 2/10-6M	Ø 10	6 MHz
	PQ 2/20-2M	Ø 20	2 MHz
	PQ 2/20-4M	Ø 20	4 MHz
	PQ 2/20-6M	Ø 20	6 MHz

Probe type	Designation	Angle	Transducer element* diameter[mm]	Frequency[MHz]
Dual angle probe	HFD 13x8-2M-60	60°	8x13	2 MHz
	HFD 13x8-2M-70	70°	8x13	2 MHz
	HFD 20x10-2M-60	60°	10x20	2 MHz
	HFD 20x10-2M-70	70°	10x20	2 MHz
	HFD 13x8-5M-60	60°	8x13	5 MHz
	HFD 13x8-5M-70	70°	8x13	5 MHz

Note:

1.Other special probes are available such as Angle beam probe with pour water, probe for variable angle, probe for locomotive piston, beam TR probe with pour water, probe for railcar axle, probe for demarcate echo, cleanout machine tansducer etc.

2.We offer all kinds of probe with customer request.

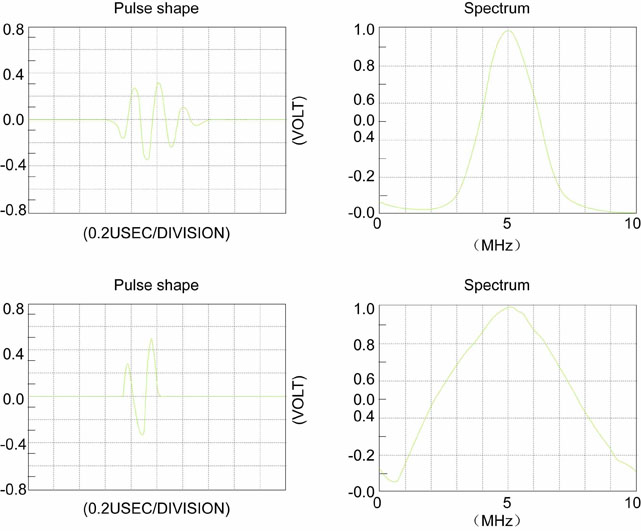

Testing Curve Report for Transducers (optional by order)
