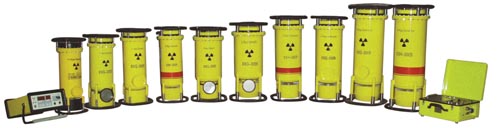

X-Ray Flaw Detector |
| |
|
¡¡ |
XXQ-1005 |
XXQ-2005 |
XXQ-2505 |
XXH-2505 |
XXG-3005 |
|
Output voltage |
20¡«100KV continuous can adjust |
100¡«200KV continuous can adjust |
150¡«250KV continuous can adjust |
150¡«250KV continuous can adjust |
170¡«300KV continuous can adjust |
|
Tube current |
5mA |
5mA |
5mA |
5mA |
5mA |
|
Focus size |
0.80¡Á0.80mm |
1.5¡Á1.5mm |
2.0¡Á2.0mm |
1.0¡Á2.4mm |
2.3¡Á2.3mm |
|
Beam angle |
40¡ã |
40£«5¡ã |
40£«5¡ã |
25£«5¡ã |
40£«5¡ã |
|
Exposal condition |
focus 600 meters; expose time 5 minters; both surface lead- platinum intensifying |
focus 600 meters; expose time 5 minters; both surface lead- platinum intensifying |
focus 600 meters; expose time 5 minters; both surface lead- platinum intensifying |
focus 600 meters; expose time 5 minters; both surface lead- platinum intensifying |
focus 600 meters; expose time 5 minters; both surface lead- platinum intensifying |
|
Transmission sensitivity |
1.5% |
1.5% |
1.5% |
1.5% |
1.5% |
|
Film black density |
£¾1.5 |
£¾1.5 |
£¾1.5 |
£¾1.5 |
£¾1.5 |
|
Max penetration ability |
8mm (A3 steel) |
30mm (A3 steel) |
40mm (A3 steel) |
38mm (A3 steel) |
50mm (A3 steel) |
|
Generator size |
¦µ135¡Á555mm |
¦µ275¡Á665mm |
320¡Á320¡Á730mm |
320¡Á320¡Á730mm |
340¡Á340¡Á720mm |
|
Generator weight |
8.50kg |
20.00kg |
37.00kg |
37.00kg |
37.00kg |
|
Controller size |
280¡Á280¡Á170mm |
365¡Á280¡Á170mm |
365¡Á310¡Á225mm |
365¡Á310¡Á225mm |
365¡Á310¡Á225mm or 360¡Á300¡Á150mm |
|
Controller weight |
10kg |
19.50kg |
19.50kg |
19.50kg |
21.50kg or 10.00kg |
|
|
|
FEATURES |
|
¡ñ Compact x-ray generator, anode grounded, forced air cooling |
|
¡ñ Light weight, portable, easy to use |
|
¡ñ The ratio of the exposure fine to the stop time is 1:1 |
|
¡ñ Aging the x-ray generator and checking the exposure parameter automatically |
|
¡ñ High voltage ,time delay function protects the operator from radiation |
|
¡ñ Strictly controlled the production techniques, nice sculpt, reasonable design |
|
1. Model: XXQ-1005 (Directional glass x-ray tube) |
|
Directional glass X-ray tube |
1 Pcs |
100KV, 5mA |
huatec |
|
Generator |
1 Set |
¡¡ |
|
|
High voltage joins cable |
1 Pcs |
25 Meters |
|
|
Controller |
1 Set |
¡¡ |
|
|
Power cable |
1 Pcs |
10 Meters |
huatec |
|
Grounding cable |
1 Pcs |
5 Meters |
|
|
Accessories |
1 Set |
¡¡ |
huatec |
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; film dark bag, 5 set; intensifying screen,5 set; penetrate degree meter,1 set; fuse,1 set;) |
|
2. Model: XXQ-2005 (Directional glass x-ray tube) |
|
Directional glass X-ray tube |
1 Pcs |
200KV, 5mA |
|
|
Generator |
1 Set |
¡¡ |
huatec |
|
High voltage joins cable |
1 Pcs |
25 Meters |
huatec |
|
Controller |
1 Set |
¡¡ |
huatec |
|
Power cable |
1 Pcs |
10 Meters |
huatec |
|
Grounding cable |
1 Pcs |
5 Meters |
huatec |
|
Accessories |
1 Set |
¡¡ |
huatec |
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; film dark bag, 5 set; intensifying screen,5 set; penetrate degree meter,1 set; fuse,1 set;) |
|
3. Model: XXQ-2505 (Directional glass x-ray tube) |
|
Directional glass X-ray tube |
1 Pcs |
250KV, 5mA |
huatec |
|
Generator |
1 Set |
¡¡ |
huatec |
|
High voltage joins cable |
1 Pcs |
25 Meters |
huatec |
|
Controller |
1 Set |
¡¡ |
huatec |
|
Power cable |
1 Pcs |
10 Meters |
huatec |
|
Grounding cable |
1 Pcs |
5 Meters |
huatec |
|
Accessories |
1 Set |
¡¡ |
huatec |
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; film dark bag, 5 set; intensifying screen,5 set; penetrate degree meter,1 set; fuse,1 set;) |
|
4. Model: XXH-2505 (Panoramic glass x-ray tube) |
|
Panoramic glass X-ray tube |
1 Pcs |
250KV, 5mA |
huatec |
|
Generator |
1 Set |
¡¡ |
huatec |
|
High voltage joins cable |
1 Pcs |
25 Meters |
huatec |
|
Controller |
1 Set |
¡¡ |
huatec |
|
Power cable |
1 Pcs |
10 Meters |
huatec |
|
Grounding cable |
1 Pcs |
5 Meters |
huatec |
|
Accessories |
1 Set |
¡¡ |
huatec |
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; film dark bag, 5 set; intensifying screen,5 set; penetrate degree meter,1 set; fuse,1 set;) |
|
5. Model: XXG-3005 (Directional ceramic x-ray tube) |
|
Ceramic X-ray tube |
1 Pcs |
300KV, 5mA |
huatec |
|
Generator |
1 Set |
¡¡ |
huatec |
|
High voltage joins cable |
1 Pcs |
25 Meters |
huatec |
|
Controller |
1 Set |
¡¡ |
huatec |
|
Power cable |
1 Pcs |
10 Meters |
huatec |
|
Grounding cable |
1 Pcs |
5 Meters |
huatec |
|
Accessories |
1 Set |
¡¡ |
huatec |
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; film dark bag, 5 set; intensifying screen,5 set; penetrate degree meter,1 set; fuse,1 set;) |
|
|
| |
