Applications:

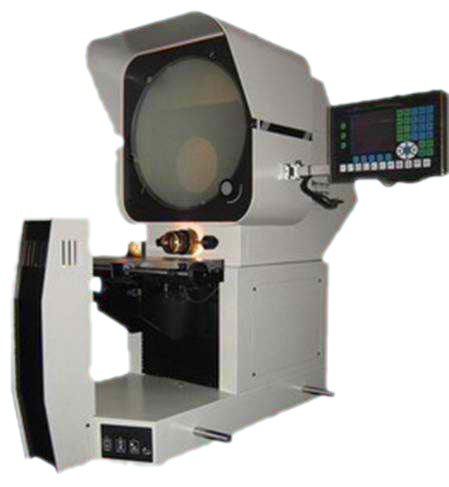

HB16 is widely used for product quality checking, researching and developing at the field of mechanic, electronic, rubber industry, and college, research institute and metrology department. HB16 is able to inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam , Screw thread, Gear, etc.
|
Features:
¡ó Sturdy metal design with the novel shape
¡ó Excellent optical path with the sharp image
¡ó Large X, Y measuring travel stage with the precision accuracy (3+L/50) ¦Ìm
¡ó Digital Multifunctional digital readout DC5000 with the strong process function
¡ó Touch panel switch protects the operator¡¯ safe
¡ó Cold surface optical fiber light source insures the unscalding for the operators and the undamaging for the tested specimens |
Technical Specifications:
|
1¡¢Projective screen:
|
¡ó Screen diameter: ¦Õ400 mm (16¡¯¡¯)
¡ó Rotation range: 0¡ã~ 360¡ã
¡ó Resolution of the rotary angle: 1¡ä
¡ó Accuracy of the rotary angle: 4¡ä |
|
2¡¢Worktable:
|
¡ó X, Z axis measuring travel: 300x 150mm; 250x150mm and 200x100mm
¡ó X, Z linear resolution: 0.001mm
¡ó Y-axis travel: 0~80mmm (Focusing) |
|
3¡¢Accuracy: |
(3+L/75)¦Ìm; |
|
4¡¢Load capacity : |
15kg |
|
5¡¢Light source: |
¡ó Contour lighting: 24V/150W Halogen tungsten lamp
¡ó Surface lighting: Double tube optical fiber |
|
6¡¢Lens£º |
(Magnification error¨Q0.08% ) |
|
¡ó Magnification |
10¡Á |
20¡Á |
50¡Á |
100¡Á |
|
¡ó Visual Field |
¦Õ40mm |
¦µ20mm |
¦µ8mm |
¦Õ4mm |
|
¡ó Working Distance |
88.376mm |
81.375mm |
54 mm |
44.9 mm |
|
7¡¢Power supply: |
220V/50Hz or 110V/60Hz |
|
8¡¢Standard Delivery: |
¡ó 10X lens group
¡ó LCD display DRO DC5000
¡ó mini-printer
¡ó foot-switch
¡ó cold surface optical fiber |
|
9¡¢Optional accessories: |
¡ó 20x, 50x and 100x lens
¡ó measuring software
¡ó angle over chart
¡ó support-vice | |
|
