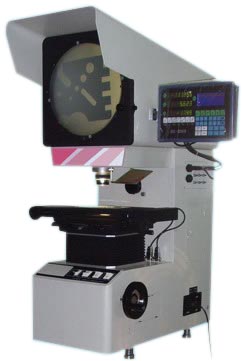

  Profile Projector VT-12



Uses and Features:
Profile Projector VT12 series are precise and excellent effective measuring instrument integrating Optic, Mechanic, Electricity, and Computer technology.
It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and the measuring checking department for checking product quality. VT12 can inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.

Technical Specification:
The Technical Specification of Profile Projector VT12 series (Unit: mm)
1¡¢Model
VT12-1550T
VT12-2010T
2¡¢Stage Travel: X and Y-axis
150¡Á50
200¡Á100
3¡¢Metal stage dimension
340¡Á152
350¡Á170
4¡¢Glass Stage Dimension
196¡Á96
246¡Á120
5¡¢Resolution of X and Y-scale
0.001
6¡¢Travel: Z axis
90 (for focusing)
7¡¢Screen diameter
Ø308, effective range¡ÝØ300mm
8¡¢Rotary range of screen
0¡«360¡ã
9 Resolution of Rotary Indicator
1'/0.01¡ã
10¡¢Accuracy
¡Ü4+L/50 (um)
11¡¢Objective magnification
10X(Std.)
20X(Opt.)
50X(Opt.)
100X(Opt.)
12¡¢Object view-field
30
15
6
3
13¡¢Work distance
78.33
44.30
24.50
25.30
14¡¢Data Processor
Multifunctional LED Digital Readout DC 3000
15¡¢Instrument Illumination
Surface and Contour Illumination: 24V/150W halogen lamp
16¡¢Power
110V/ 220V(AC)£¬ 50/60HZ
17¡¢Dimension (D¡Á W ¡Á H)
770 ¡Á 550 ¡Á 1100/770 ¡Á 810 ¡Á 1120
18¡¢Instrument Weight
130Kg
170Kg
130Kg
170Kg



Optional Accessories:
Working Stand; Objective 20X, 50X, 100X; Rotary table; mini-printer; Over chart and measuring software
