Main Features

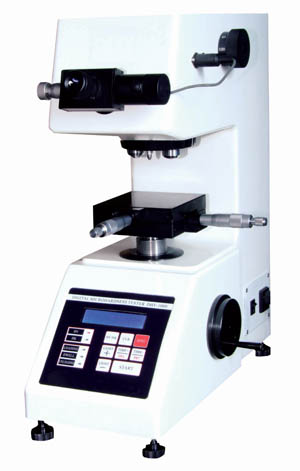

DHV-1000 Micro Vickers Hardness Tester made with a unique and precise design in the field of mechanics ,optics and light source is able to produce a clearer indentation and hence a more precise measurement. By means of a 20 × lens and a 40 × lens the tester has a wider measurement field and a broader usage range. Equipped with a digital microscope, it shows the measuring methods, the test force, the indentation length, the hardness value, the dwell time of the test force as well as the number of the measurements —— all shown on its LCD screen. What is more, it is equipped with an interface linked to a digital camera and a CCD Video—camera, and is, therefore, a representative of the products of the same kind in the country.
Usage Range
Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones;
Hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Technical Features
Test Forces：(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N (10, 25, 50, 100, 200, 300, 500, 1000) gf
Carriage Control: automatic ( loading / holding-up of the load / unloading )
Amplification of the Microscope: 200 ×、 400 ×
Dwell Time of the Test Force: (5-60)s
Min. Graduation Value of the Testing Drum Wheel: 0.0625um
Testing Field: 1HV—2967HV
Dimension of the XY Table: 100 × 100 mm
Movement Field of the XY Table: 25 × 25mm
Max. height of the specimen : 70 mm
Max. width of the specimen : 95mm
Output : installed with a printer and a RS232 serial interface
Light source : cold light source
Power Supply : 110V/220V,60/50Hz
Dimension: (425 × 245 × 490)mm
Weight: 30Kg
Main accessories
XY-stage test table 1
Thin specimen test table 1
Fork-shaped test table 1
Fine wire test table 1
Adjustable screw 1
10×Digital Micro Lens 1
Micro Vickers hardness blocks (high medium) 2
Gradienter 1 |
|
